Glass Floor Construction Detail

The floorglaze range is comprised of a load bearing construction of multi layered panes of toughened and heat soaked safety glass resin laminated together to carry pedestrian and concentrated loads.

Glass floor construction detail. The glass profile was considered adequate both for a cracked and an uncracked profile. For most installations ibp supplies two ply laminated glass units. The first approach to achieving a strong durable struc ture involving economical use of materials is to follow a.

Glass floors can be installed as one panel however for some larger installations minimal steel sections or frameless glass beams can be used to support any glass joints as necessary. A top layer tempered for impact resistance and a heat strengthened bottom layer bonded with a clear resin inter layer. The laminate used is dupont s sentryglas plus which is five times stronger and up to 100 times stiffer than conventional laminating materials.

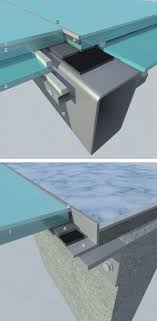

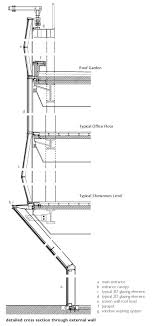

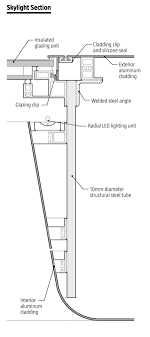

Glass floor design low iron glass is always recommended due to the thick layers of glass generally needed to create the structural support to the walk on glass floor. As a structural glass installer structural glass design will design all fixing and support details to suit the specific project or space. The glass flooring systems cad details below are complete drawings that can easily be downloaded customized for your residential or commercial project and included in your cad library for future use.

Floor joists over a crawl space may reach seasonal moisture contents in excess of 14 percent. Listings cad files bim 3d files specifications. There are numerous ways to do this.

Anti slip resistance can be applied to the surface of a walk on structural glass floor for added safety especially to external glass floors. Only glass flooring systems provides you with complete walk on glass flooring packages precisely designed and built to work seamlessly together. Details for conventional wood frame construction.

The introduction of light through the core a building can transform what might otherwise be dull claustrophobic interior. We offer the most rigorously and comprehensively tested walkable glass products in the world with essential resources that dramatically simplify design build process. By downloading and using any arcat cad content you agree to the following license agreement.
